EN 1634-1 – Fire-resistant doors, windows and walls (E/I/W classification)
European test standard for fire resistance of protective structures
The EN 1634-1 standard specifies how doors, windows, shutters, and walls are tested under standardized fire conditions. This test measures:
- how quickly a structure ignites,
- how long it holds back the flames,
- how much heat or smoke can penetrate,
- and how long the element maintains its structural integrity.
Fire resistance is important for both personal safety and business continuity. A door or wall that slows down a fire creates valuable time for evacuation, intervention, and damage limitation, especially in critical areas such as technical rooms, data centers, public buildings, and industrial sites.
Classes available at Armatis:
Classifications according to EN 1634-1 / EN 13501-2
Fire resistance performance is expressed in three parameter::
E – Flame tightness
Protects against the passage of flames and smoke.
Prevents flame spread to adjacent spaces.
I – Thermal insulation
Indicates how well the element retains heat.
Prevents the temperature of the safe side from rising too quickly: important to prevent fire spread via heat radiation
W – Heat radiation
Measures the amount of heat radiation that penetrates the structure.
This class protects people and fire-sensitive materials behind the door or wall.
Time ratings: EI30 – EI60 – EI120
The classification is always linked to a time period that indicates how long the element guarantees its performance:
- EI30 → 30 minutes of protection
- EI60 → 60 minutes of protection
- EI120 → 120 minutes of protection
The higher the value, the longer the door, wall, or glass module will resit flames, heat and smoke.
Fire-resistant solutions at Armatis
Armatis applies fire-resistant solutions to:
- doors (security doors & technical fire doors)
- walls and compartments
- glass structures

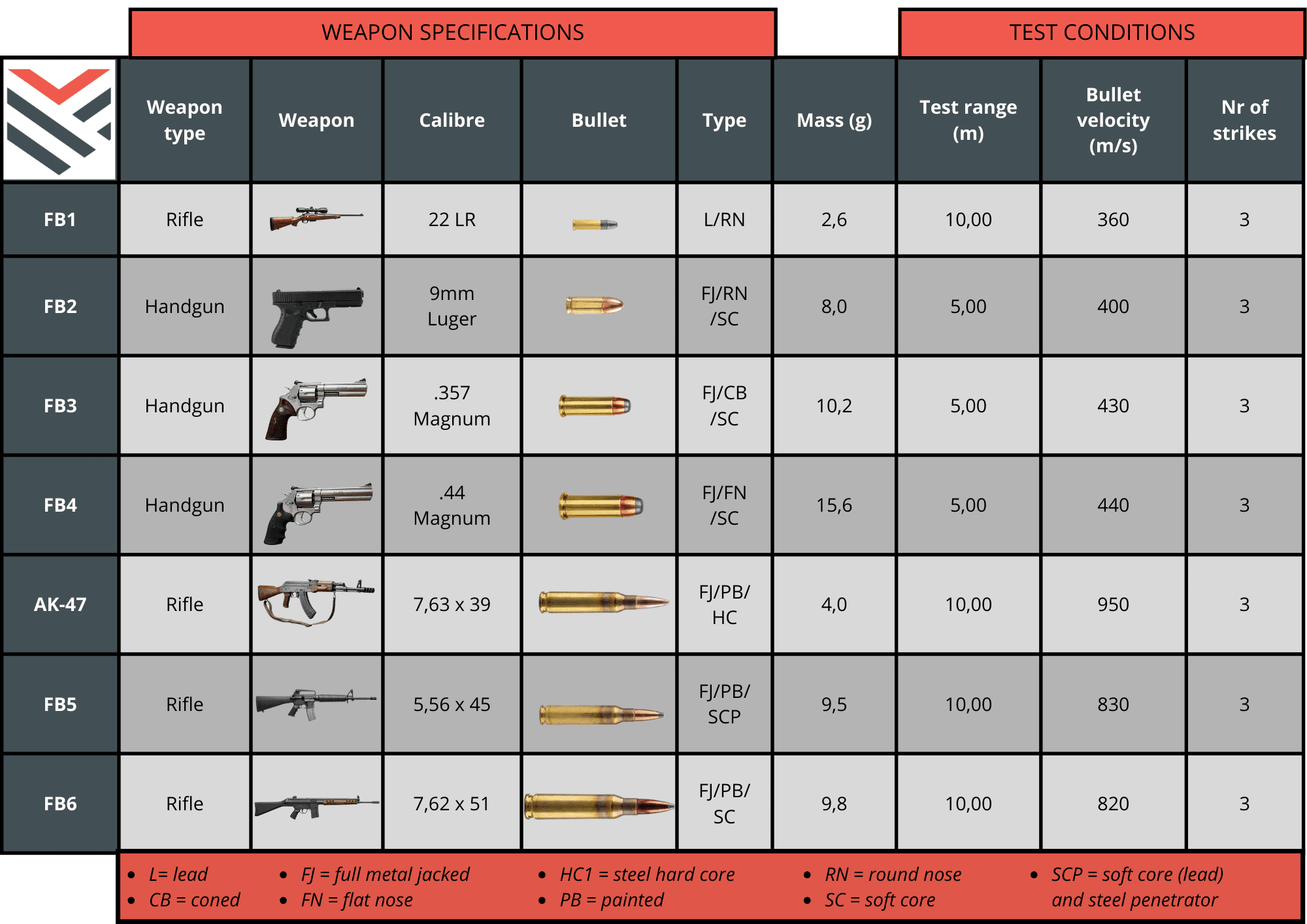

All these elements can also be combined with burglar resistance (RC), bullet resistance (FB/BR), or blast resistance, depending on the building's risk profile.
Why fire resistance is important for your project
Fire-resistant certifications according to EN 1634-1 guarantees:
- correct evacuation and intervention time
- protection of ciritcal areas (IT, archive, vault, control room,…)
- compliance with legal and insurance requirements
- limitation of personal injury and business interruption
Related projects
Looking for expert guidance?
Our specialists provide expert guidance on the optimal combination of security structures, standards, and materials for your project.
